HTTP 服务器

Doubao 中英对照 HTTP Server

1. 启动与停止
- 1.1. 主机与端口
2. 预先初始化
3. HTTP 路由
- 3.1. SSE
- 3.2. 静态资源
4. 写入数据
- 4.1. 添加请求头与其他元数据
- 4.2. 压缩
5. 读取数据
6. 生命周期回调
7. TCP 层配置
- 7.1. 线路日志
- 7.2. 事件循环组
8. SSL 与 TLS
- 8.1. 服务器名称指示
9. HTTP 日志
- 9.1. 访问日志
- 9.2. 错误日志
10. HTTP/2
- 10.1. 协议选择
11. HTTP/3
12. 指标
13. 追踪
- 13.1. 获取当前观测
14. Unix 域套接字
15. 超时配置

Reactor Netty 提供了易于使用、易于配置的 HttpServer 类。它屏蔽了创建 HTTP 服务器所需的大部分 Netty 功能，并加入了 Reactive Streams 背压。

1. 启动与停止

要启动 HTTP 服务器，您必须创建并配置一个 HttpServer 实例。默认情况下，host 被配置为任意本地地址，当调用 bind 操作时，系统会选用一个临时端口。以下示例展示了如何创建 HttpServer 实例：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/create/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()   1
				          .bindNow(); 2

		server.onDispose()
		      .block();
	}
}

创建一个可供配置的 HttpServer 实例。
以阻塞方式启动服务器，并等待其完成初始化。

返回的 DisposableServer 提供了简单的服务器 API，其中包括 disposeNow()，它以阻塞方式关闭服务器。

1.1. 主机与端口

要在指定的 host 和 port 上提供服务，您可以对 HTTP 服务器应用以下配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/address/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .host("localhost") 1
				          .port(8080)        2
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

配置 HTTP 服务器主机
配置 HTTP 服务器端口

要在多个地址上提供服务，在配置好 HttpServer 之后，您可以多次绑定它以获得各自独立的 DisposableServer。所有创建的服务器都会共享诸如 LoopResources 之类的资源，因为它们在底层使用同一个配置实例。

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/address/MultiAddressApplication.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class MultiAddressApplication {
	public static void main(String[] args) {
		HttpServer httpServer = HttpServer.create();
		DisposableServer server1 = httpServer
				.host("localhost") 1
				.port(8080)        2
				.bindNow();

		DisposableServer server2 = httpServer
				.host("0.0.0.0") 3
				.port(8081)      4
				.bindNow();

		Mono.when(server1.onDispose(), server2.onDispose())
				.block();
	}
}

配置第一个 HTTP 服务器主机
配置第一个 HTTP 服务器端口
配置第二个 HTTP 服务器主机
配置第二个 HTTP 服务器端口

2. 预先初始化

默认情况下，HttpServer 资源是按需初始化的。这意味着 bind operation 会承担初始化与加载所需的额外时间：

事件循环组
原生传输库（当使用原生传输时）
用于安全的原生库（在使用 OpenSsl 的情况下）

当您需要预加载这些资源时，可以按如下方式配置 HttpServer：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/warmup/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		HttpServer httpServer =
				HttpServer.create()
				          .handle((request, response) -> request.receive().then());

		httpServer.warmup() 1
		          .block();

		DisposableServer server = httpServer.bindNow();

		server.onDispose()
		      .block();
	}
}

初始化并加载事件循环组、原生传输库以及用于安全的原生库

3. HTTP 路由

为 HTTP 服务器定义路由，需要配置所提供的 HttpServerRoutes 构建器。以下示例展示了如何操作：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/routing/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .route(routes ->
				              routes.get("/hello",        1
				                        (request, response) -> response.sendString(Mono.just("Hello World!")))
				                    .post("/echo",        2
				                        (request, response) -> response.send(request.receive().retain()))
				                    .get("/path/{param}", 3
				                        (request, response) -> response.sendString(Mono.just(request.param("param"))))
				                    .ws("/ws",            4
				                        (wsInbound, wsOutbound) -> wsOutbound.send(wsInbound.receive().retain())))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

处理发往 /hello 的 GET 请求，并返回 Hello World!
处理发往 /echo 的 POST 请求，并将收到的请求体作为响应返回。
处理发往 /path/{param} 的 GET 请求，并返回路径参数的值。
处理发往 /ws 的 WebSocket 请求，并将收到的入站数据作为出站数据返回。

备注

服务器路由是唯一的，只会调用按声明顺序匹配到的第一个路由。

备注

如果配置了基于 HTTP/2 的 WebSocket，请确保启用了 HTTP/2 初始设置 projectreactor.io/docs/netty/1.3.0-RC1/api/reactor/netty/http/Http2SettingsSpec.Builder.html#connectProtocolEnabled-boolean-。

3.1. SSE

以下代码展示了如何配置 HTTP 服务器以提供 Server-Sent Events：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/sse/Application.java

import com.fasterxml.jackson.databind.ObjectMapper;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.ByteBufAllocator;
import org.reactivestreams.Publisher;
import reactor.core.publisher.Flux;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.HttpServerRequest;
import reactor.netty.http.server.HttpServerResponse;

import java.io.ByteArrayOutputStream;
import java.nio.charset.Charset;
import java.time.Duration;
import java.util.function.BiFunction;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .route(routes -> routes.get("/sse", serveSse()))
				          .bindNow();

		server.onDispose()
		      .block();
	}

	/**
	 * Prepares SSE response.
	 * The "Content-Type" is "text/event-stream".
	 * The flushing strategy is "flush after every element" emitted by the provided Publisher.
	 */
	private static BiFunction<HttpServerRequest, HttpServerResponse, Publisher<Void>> serveSse() {
		Flux<Long> flux = Flux.interval(Duration.ofSeconds(10));
		return (request, response) ->
		        response.sse()
		                .send(flux.map(Application::toByteBuf), b -> true);
	}

	/**
	 * Transforms the Object to ByteBuf following the expected SSE format.
	 */
	private static ByteBuf toByteBuf(Object any) {
		ByteArrayOutputStream out = new ByteArrayOutputStream();
		try {
			out.write("data: ".getBytes(Charset.defaultCharset()));
			MAPPER.writeValue(out, any);
			out.write("\n\n".getBytes(Charset.defaultCharset()));
		}
		catch (Exception e) {
			throw new RuntimeException(e);
		}
		return ByteBufAllocator.DEFAULT
		                       .buffer()
		                       .writeBytes(out.toByteArray());
	}

	private static final ObjectMapper MAPPER = new ObjectMapper();
}

3.2. 静态资源

以下代码展示了如何配置 HTTP 服务器以提供静态资源：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/staticresources/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

import java.net.URISyntaxException;
import java.nio.file.Path;
import java.nio.file.Paths;

public class Application {

	public static void main(String[] args) throws URISyntaxException {
		Path file = Paths.get(Application.class.getResource("/logback.xml").toURI());
		DisposableServer server =
				HttpServer.create()
				          .route(routes -> routes.file("/index.html", file))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

4. 写入数据

要向已连接的客户端发送数据，您必须通过 handle(…) 或 route(…) 附加一个 I/O 处理器。该 I/O 处理器可访问 HttpServerResponse，以便写入数据。以下示例使用了 handle(…) 方法：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/send/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .handle((request, response) -> response.sendString(Mono.just("hello"))) 1
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

向已连接的客户端发送 hello 字符串

4.1. 添加请求头与其他元数据

当您向已连接的客户端发送数据时，可能还需要发送额外的请求头、Cookie、状态码及其他元数据。您可以通过 HttpServerResponse 提供这些额外的元数据。以下示例展示了如何操作：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/send/headers/Application.java

import io.netty.handler.codec.http.HttpHeaderNames;
import io.netty.handler.codec.http.HttpResponseStatus;
import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .route(routes ->
				              routes.get("/hello",
				                  (request, response) ->
				                      response.status(HttpResponseStatus.OK)
				                              .header(HttpHeaderNames.CONTENT_LENGTH, "12")
				                              .sendString(Mono.just("Hello World!"))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

4.2. 压缩

您可以根据请求头 Accept-Encoding，配置 HTTP 服务器发送压缩后的响应。

Reactor Netty 提供了三种不同的出站数据压缩策略：

compress(boolean)：根据所提供的布尔值启用（true）或禁用（false）压缩。
compress(int)：当响应大小超过给定值（字节）时执行压缩。
compress(BiPredicate<HttpServerRequest, HttpServerResponse>)：当谓词返回 true 时执行压缩。
compressOptions(HttpCompressionOption… compressionOptions)：指定 GZip、Deflate 和 ZSTD 的压缩选项。
备注
GZip 压缩选项
- compression level：仅允许 0 到 9 的范围。（默认值：6）
- window bits：仅允许 0 到 9 的范围。（默认值：15）
- memory level：仅允许 1 到 9 的范围。（默认值：8）
Deflate 压缩选项
- compression level：仅允许 0 到 9 的范围。（默认值：6）
- window bits：仅允许 0 到 9 的范围。（默认值：15）
- memory level：仅允许 1 到 9 的范围。（默认值：8）
ZSTD 压缩选项
- compression level：仅允许 -131072 到 9 的范围。（默认值：3）
- block size：仅允许正数。（默认值：65536，即 64KB）
- max encode size：仅允许正数。（默认值：33554432，即 32MB）

以下示例使用 compress 方法（设为 true）来启用压缩：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/compression/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

import java.net.URISyntaxException;
import java.nio.file.Path;
import java.nio.file.Paths;

public class Application {

	public static void main(String[] args) throws URISyntaxException {
		Path file = Paths.get(Application.class.getResource("/logback.xml").toURI());
		DisposableServer server =
				HttpServer.create()
				          .compress(true)
				          .route(routes -> routes.file("/index.html", file))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

5. 读取数据

要从已连接的客户端接收数据，您必须通过 handle(…) 或 route(…) 附加一个 I/O 处理器。该 I/O 处理器可访问 HttpServerRequest，以便读取数据。

以下示例使用了 handle(…) 方法：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/read/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .handle((request, response) -> request.receive().then()) 1
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

从已连接的客户端接收数据

5.1. 读取请求头、URI 参数与其他元数据

当您从已连接的客户端接收数据时，可能需要检查请求头、参数及其他元数据。您可以通过 HttpServerRequest 获取这些额外的元数据。以下示例展示了如何操作：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/read/headers/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .route(routes ->
				              routes.get("/{param}",
				                  (request, response) -> {
				                      if (request.requestHeaders().contains("Some-Header")) {
				                          return response.sendString(Mono.just(request.param("param")));
				                      }
				                      return response.sendNotFound();
				                  }))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

5.2. 读取 POST 表单或 Multipart 数据

当您从已连接的客户端接收数据时，可能希望访问 POST form（application/x-www-form-urlencoded）或 multipart（multipart/form-data）数据。您可以通过 HttpServerRequest 获取这些数据。

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/multipart/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .route(routes ->
				              routes.post("/multipart", (request, response) -> response.sendString(
				                      request.receiveForm() 1
				                             .flatMap(data -> Mono.just('[' + data.getName() + ']')))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

接收 POST 表单/multipart 数据。

当您需要更改默认设置时，可以配置 HttpServer，也可以为每个请求提供单独的配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/multipart/custom/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .httpFormDecoder(builder -> builder.maxInMemorySize(0))                  1
				          .route(routes ->
				              routes.post("/multipart", (request, response) -> response.sendString(
				                      request.receiveForm(builder -> builder.maxInMemorySize(256)) 2
				                             .flatMap(data -> Mono.just('[' + data.getName() + ']')))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

在 HttpServer 上配置，指定数据仅存储在磁盘上。
按请求配置，指定当数据大小超过指定大小时，将数据存储到磁盘上。

以下清单展示了可用的配置：

配置名称	说明
`baseDirectory`	配置在磁盘上存储数据的目录。默认为生成的临时目录。
`charset`	配置数据的 `Charset`。默认为 `StandardCharsets#UTF_8`。
`maxInMemorySize`	配置每条数据的最大内存大小；即当数据大小大于 `maxInMemorySize` 时写入磁盘，否则保存在内存中。设为 `-1` 时全部内容保存在内存中。设为 `0` 时全部内容保存在磁盘上。默认为 `16kb`。
`maxSize`	配置每条数据的最大大小。达到该限制时会抛出异常。设为 `-1` 表示不限制。默认为 `-1`（无限制）。
`scheduler`	配置在解码阶段用于卸载磁盘操作的调度器。默认为 `Schedulers#boundedElastic()`
`streaming`	设为 `true` 时，数据直接从解析后的输入缓冲区流中流式传输，意味着既不存储在内存中也不存储在文件中。设为 `false` 时，各部分由内存和/或文件存储支撑。默认为 `false`。注意：启用流式传输后，所提供的数据可能并非处于完整状态，即必须检查 `HttpData#isCompleted()`。另请注意，启用此属性会使 `maxInMemorySize`、`baseDirectory` 和 `scheduler` 实际上失效。

5.2.1. 获取远程（客户端）地址

除了可以从请求中获取的元数据之外，您还可以获取 host（服务器） 地址、remote（客户端） 地址以及 scheme。根据所选的工厂方法，您可以直接从通道获取这些信息，也可以通过 Forwarded 或 X-Forwarded-* HTTP 请求头获取。以下示例展示了如何操作：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/clientaddress/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .forwarded(true) 1
				          .route(routes ->
				              routes.get("/clientip",
				                  (request, response) ->
				                      response.sendString(Mono.just(request.remoteAddress() 2
				                                                           .getHostString()))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

指定在可能时从 Forwarded 和 X-Forwarded-* HTTP 请求头获取连接相关信息。
返回远程（客户端）对端的地址。

也可以自定义 Forwarded 或 X-Forwarded-* 请求头处理器的行为。以下示例展示了如何操作：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/clientaddress/CustomForwardedHeaderHandlerApplication.java

import java.net.InetSocketAddress;

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.transport.AddressUtils;

public class CustomForwardedHeaderHandlerApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .forwarded((connectionInfo, request) -> {  1
				              String hostHeader = request.headers().get("X-Forwarded-Host");
				              if (hostHeader != null) {
				                  String[] hosts = hostHeader.split(",", 2);
				                  InetSocketAddress hostAddress = AddressUtils.createUnresolved(
				                      hosts[hosts.length - 1].trim(),
				                      connectionInfo.getHostAddress().getPort());
				                  connectionInfo = connectionInfo.withHostAddress(hostAddress);
				              }
				              return connectionInfo;
				          })
				          .route(routes ->
				              routes.get("/clientip",
				                  (request, response) ->
				                      response.sendString(Mono.just(request.remoteAddress() 2
				                                                           .getHostString()))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

添加自定义请求头处理器。
返回远程（客户端）对端的地址。

5.3. HTTP 请求解码器

默认情况下，Netty 对入站请求配置了一些限制，例如：

初始行的最大长度
所有请求头的最大长度
内容或每个数据块的最大长度

有关更多信息，请参阅 HttpRequestDecoder 与 HttpServerUpgradeHandler

默认情况下，HTTP 服务器配置了以下设置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-http/src/main/java/reactor/netty/http/HttpDecoderSpec.java

public static final int DEFAULT_MAX_INITIAL_LINE_LENGTH             = 4096;
	public static final int DEFAULT_MAX_HEADER_SIZE                     = 8192;
	/**
	 * Default max chunk size.
	 *
	 * @deprecated as of 1.1.0. This will be removed in 2.0.0 as Netty 5 does not support this configuration.
	 */
	@Deprecated
	public static final int DEFAULT_MAX_CHUNK_SIZE                      = 8192;
	public static final boolean DEFAULT_VALIDATE_HEADERS                = true;
	public static final int DEFAULT_INITIAL_BUFFER_SIZE                 = 128;
	public static final boolean DEFAULT_ALLOW_DUPLICATE_CONTENT_LENGTHS = false;
	public static final boolean DEFAULT_ALLOW_PARTIAL_CHUNKS            = true;

github.com/reactor/reactor-netty/tree/main/reactor-netty-http/src/main/java/reactor/netty/http/server/HttpRequestDecoderSpec.java

/**
	 * The maximum length of the content of the HTTP/2.0 clear-text upgrade request.
	 * By default, the server will reject an upgrade request with non-empty content,
	 * because the upgrade request is most likely a GET request.
	 */
	public static final int DEFAULT_H2C_MAX_CONTENT_LENGTH = 0;

当您需要更改这些默认设置时，可以按如下方式配置 HTTP 服务器：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/requestdecoder/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .httpRequestDecoder(spec -> spec.maxHeaderSize(16384)) 1
				          .handle((request, response) -> response.sendString(Mono.just("hello")))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

所有请求头的最大长度将为 16384。超过该值时会抛出 TooLongFrameException。

6. 生命周期回调

提供了以下生命周期回调，供您扩展 HttpServer：

回调	说明
`doOnBind`	在服务器通道即将绑定时调用。
`doOnBound`	在服务器通道已绑定时调用。
`doOnChannelInit`	在初始化通道时调用。
`doOnConnection`	在远程客户端连接时调用
`doOnUnbound`	在服务器通道解绑时调用。

以下示例使用了 doOnConnection 和 doOnChannelInit 回调：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/lifecycle/Application.java

import io.netty.handler.logging.LoggingHandler;
import io.netty.handler.timeout.ReadTimeoutHandler;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import java.util.concurrent.TimeUnit;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .doOnConnection(conn ->
				              conn.addHandlerFirst(new ReadTimeoutHandler(10, TimeUnit.SECONDS))) 1
				          .doOnChannelInit((observer, channel, remoteAddress) ->
				              channel.pipeline()
				                     .addFirst(new LoggingHandler("reactor.netty.examples")))    2
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

当远程客户端连接时，Netty 管道会加入 ReadTimeoutHandler。
在初始化通道时，Netty 管道会加入 LoggingHandler。

7. TCP 层配置

当您需要更改 TCP 层配置时，可以使用以下代码片段来扩展默认的 TCP 服务器配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/channeloptions/Application.java

import io.netty.channel.ChannelOption;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 10000)
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

有关 TCP 层配置的更多详细信息，请参阅 TCP Server。

7.1. 线路日志

当需要检查各对端之间的流量时，Reactor Netty 提供了线路日志。默认情况下线路日志是禁用的。要启用它，您必须将日志记录器 reactor.netty.http.server.HttpServer 的级别设为 DEBUG，并应用以下配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/wiretap/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .wiretap(true) 1
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

启用线路日志

7.1.1. 线路日志格式化器

Reactor Netty 支持 3 种不同的格式化器：

AdvancedByteBufFormat#HEX_DUMP — 默认值

github.com/reactor/reactor-netty/tree/main/reactor-netty-core/src/main/java/reactor/netty/transport/logging/AdvancedByteBufFormat.java

/**
	 * When wire logging is enabled with this format, both events and content will be logged.
	 * The content will be in hex format.
	 * <p>Examples:</p>
	 * <pre>
	 * {@code
	 * reactor.netty.http.HttpTests - [d5230a14, L:/0:0:0:0:0:0:0:1:60267 - R:/0:0:0:0:0:0:0:1:60269] REGISTERED
	 * reactor.netty.http.HttpTests - [d5230a14, L:/0:0:0:0:0:0:0:1:60267 - R:/0:0:0:0:0:0:0:1:60269] ACTIVE
	 * reactor.netty.http.HttpTests - [d5230a14, L:/0:0:0:0:0:0:0:1:60267 - R:/0:0:0:0:0:0:0:1:60269] READ: 145B
	 *          +-------------------------------------------------+
	 *          |  0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f |
	 * +--------+-------------------------------------------------+----------------+
	 * |00000000| 50 4f 53 54 20 2f 74 65 73 74 2f 57 6f 72 6c 64 |POST /test/World|
	 * |00000010| 20 48 54 54 50 2f 31 2e 31 0d 0a 43 6f 6e 74 65 | HTTP/1.1..Conte|
	 * |00000020| 6e 74 2d 54 79 70 65 3a 20 74 65 78 74 2f 70 6c |nt-Type: text/pl|
	 * |00000030| 61 69 6e 0d 0a 75 73 65 72 2d 61 67 65 6e 74 3a |ain..user-agent:|
	 * |00000040| 20 52 65 61 63 74 6f 72 4e 65 74 74 79 2f 64 65 | ReactorNetty/de|
	 * ...
	 * reactor.netty.http.HttpTests - [d5230a14, L:/0:0:0:0:0:0:0:1:60267 - R:/0:0:0:0:0:0:0:1:60269] WRITE: 38B
	 *          +-------------------------------------------------+
	 *          |  0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f |
	 * +--------+-------------------------------------------------+----------------+
	 * |00000000| 48 54 54 50 2f 31 2e 31 20 32 30 30 20 4f 4b 0d |HTTP/1.1 200 OK.|
	 * |00000010| 0a 63 6f 6e 74 65 6e 74 2d 6c 65 6e 67 74 68 3a |.content-length:|
	 * |00000020| 20 30 0d 0a 0d 0a                               | 0....          |
	 * +--------+-------------------------------------------------+----------------+
	 * }
	 * </pre>
	 */

AdvancedByteBufFormat#SIMPLE

github.com/reactor/reactor-netty/tree/main/reactor-netty-core/src/main/java/reactor/netty/transport/logging/AdvancedByteBufFormat.java

/**
	 * When wire logging is enabled with this format, only the events will be logged.
	 * <p>Examples:</p>
	 * <pre>
	 * {@code
	 * reactor.netty.http.HttpTests - [230d3686, L:/0:0:0:0:0:0:0:1:60241 - R:/0:0:0:0:0:0:0:1:60245] REGISTERED
	 * reactor.netty.http.HttpTests - [230d3686, L:/0:0:0:0:0:0:0:1:60241 - R:/0:0:0:0:0:0:0:1:60245] ACTIVE
	 * reactor.netty.http.HttpTests - [230d3686, L:/0:0:0:0:0:0:0:1:60241 - R:/0:0:0:0:0:0:0:1:60245] READ: 145B
	 * reactor.netty.http.HttpTests - [230d3686, L:/0:0:0:0:0:0:0:1:60241 - R:/0:0:0:0:0:0:0:1:60245] WRITE: 38B
	 * }
	 * </pre>
	 */

AdvancedByteBufFormat#TEXTUAL

github.com/reactor/reactor-netty/tree/main/reactor-netty-core/src/main/java/reactor/netty/transport/logging/AdvancedByteBufFormat.java

/**
	 * When wire logging is enabled with this format, both events and content will be logged.
	 * The content will be in plain text format.
	 * <p>Examples:</p>
	 * <pre>
	 * {@code
	 * reactor.netty.http.HttpTests - [02c3db6c, L:/0:0:0:0:0:0:0:1:60317 - R:/0:0:0:0:0:0:0:1:60319] REGISTERED
	 * reactor.netty.http.HttpTests - [02c3db6c, L:/0:0:0:0:0:0:0:1:60317 - R:/0:0:0:0:0:0:0:1:60319] ACTIVE
	 * reactor.netty.http.HttpTests - [02c3db6c, L:/0:0:0:0:0:0:0:1:60317 - R:/0:0:0:0:0:0:0:1:60319] READ: 145B POST /test/World HTTP/1.1
	 * Content-Type: text/plain
	 * user-agent: ReactorNetty/dev
	 * ...
	 * reactor.netty.http.HttpTests - [02c3db6c, L:/0:0:0:0:0:0:0:1:60317 - R:/0:0:0:0:0:0:0:1:60319] WRITE: 38B HTTP/1.1 200 OK
	 * content-length: 0
	 * }
	 * </pre>
	 */

当您需要更改默认格式化器时，可以按如下方式配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/wiretap/custom/Application.java

import io.netty.handler.logging.LogLevel;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.transport.logging.AdvancedByteBufFormat;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .wiretap("logger-name", LogLevel.DEBUG, AdvancedByteBufFormat.TEXTUAL) 1
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

启用线路日志，并使用 AdvancedByteBufFormat#TEXTUAL 打印内容。

7.2. 事件循环组

默认情况下，Reactor Netty 使用一个“事件循环组”，其中工作线程的数量等于初始化时运行时可用的处理器数量（但最少为 4）。该“事件循环组”在同一个 JVM 中的所有服务器与客户端之间共享。当您需要不同的配置时，可以使用 LoopResources 的 #create 方法之一。

以下清单展示了事件循环组的默认配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-core/src/main/java/reactor/netty/ReactorNetty.java

/**
	 * Default worker thread count, fallback to available processor
	 * (but with a minimum value of 4).
	 */
	public static final String IO_WORKER_COUNT = "reactor.netty.ioWorkerCount";
	/**
	 * Default selector thread count, fallback to -1 (no selector thread)
	 * <p><strong>Note:</strong> In most use cases using a worker thread also as a selector thread works well.
	 * A possible use case for specifying a separate selector thread might be when the worker threads are too busy
	 * and connections cannot be accepted fast enough.
	 * <p><strong>Note:</strong> Although more than 1 can be configured as a selector thread count, in reality
	 * only 1 thread will be used as a selector thread.
	 */
	public static final String IO_SELECT_COUNT = "reactor.netty.ioSelectCount";
	/**
	 * Default worker thread count for UDP, fallback to available processor
	 * (but with a minimum value of 4).
	 */
	public static final String UDP_IO_THREAD_COUNT = "reactor.netty.udp.ioThreadCount";
	/**
	 * Default quiet period that guarantees that the disposal of the underlying LoopResources
	 * will not happen, fallback to 2 seconds.
	 */
	public static final String SHUTDOWN_QUIET_PERIOD = "reactor.netty.ioShutdownQuietPeriod";
	/**
	 * Default maximum amount of time to wait until the disposal of the underlying LoopResources
	 * regardless if a task was submitted during the quiet period, fallback to 15 seconds.
	 */
	public static final String SHUTDOWN_TIMEOUT = "reactor.netty.ioShutdownTimeout";

	/**
	 * Default value whether the native transport (epoll, io_uring, kqueue) will be preferred,
	 * fallback it will be preferred when available.
	 * <p><strong>Note:</strong> On {@code Linux}, {@code Epoll} will be preferred by default.
	 * If {@code IO_Uring} needs to be configured, a dependency to {@code io.netty:netty-transport-native-io_uring}
	 * has to be added.
	 */
	public static final String NATIVE = "reactor.netty.native";

如果您需要更改这些设置，可以应用以下配置：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/eventloop/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.resources.LoopResources;

public class Application {

	public static void main(String[] args) {
		LoopResources loop = LoopResources.create("event-loop", 1, 4, true);

		DisposableServer server =
				HttpServer.create()
				          .runOn(loop)
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

7.2.1. 释放事件循环组

如果您使用 Reactor Netty 提供的默认 Event Loop Group，请调用 HttpResources 的 #disposeLoopsAndConnections / #disposeLoopsAndConnectionsLater 方法。

备注

释放 HttpResources 意味着正在使用它的每个服务器/客户端都将无法再使用它！

如果您使用自定义 LoopResources，请调用 LoopResources 的 #dispose / #disposeLater 方法。

备注

释放自定义 LoopResources 意味着配置为使用它的每个服务器/客户端都将无法再使用它！

8. SSL 与 TLS

当您需要 SSL 或 TLS 时，可以应用下例所示的配置。默认情况下，如果 OpenSSL 可用，则使用 SslProvider.OPENSSL 作为提供方；否则使用 SslProvider.JDK。您可以通过 SslContextBuilder 或设置 -Dio.netty.handler.ssl.noOpenSsl=true 来切换提供方。

以下示例使用了 SslContextBuilder：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/security/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.Http11SslContextSpec;
import reactor.netty.http.server.HttpServer;
import java.io.File;

public class Application {

	public static void main(String[] args) {
		File cert = new File("certificate.crt");
		File key = new File("private.key");

		Http11SslContextSpec http11SslContextSpec = Http11SslContextSpec.forServer(cert, key);

		DisposableServer server =
				HttpServer.create()
				          .secure(spec -> spec.sslContext(http11SslContextSpec))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

8.1. 服务器名称指示

您可以为 HTTP 服务器配置多个映射到特定域名的 SslContext。配置 SNI 映射时，可以使用精确域名，也可以使用包含通配符的域名。

以下示例使用了一个包含通配符的域名：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/sni/Application.java

import io.netty.handler.ssl.SslContext;
import io.netty.handler.ssl.SslContextBuilder;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

import java.io.File;

public class Application {

	public static void main(String[] args) throws Exception {
		File defaultCert = new File("default_certificate.crt");
		File defaultKey = new File("default_private.key");

		File testDomainCert = new File("default_certificate.crt");
		File testDomainKey = new File("default_private.key");

		SslContext defaultSslContext = SslContextBuilder.forServer(defaultCert, defaultKey).build();
		SslContext testDomainSslContext = SslContextBuilder.forServer(testDomainCert, testDomainKey).build();

		DisposableServer server =
				HttpServer.create()
				          .secure(spec -> spec.sslContext(defaultSslContext)
				                              .addSniMapping("*.test.com",
				                                      testDomainSpec -> testDomainSpec.sslContext(testDomainSslContext)))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

9. HTTP 日志

您可以通过编程方式或配置来启用 HTTP 访问日志或错误日志。默认情况下是禁用的。

9.1. 访问日志

您可以使用 -Dreactor.netty.http.server.accessLogEnabled=true 通过配置来启用 HTTP 访问日志。

您可以使用以下配置（适用于 Logback 或类似日志框架）来获得独立的 HTTP 访问日志文件：

<appender name="accessLog" class="ch.qos.logback.core.FileAppender">
    <file>access_log.log</file>
    <encoder>
        <pattern>%msg%n</pattern>
    </encoder>
</appender>
<appender name="async" class="ch.qos.logback.classic.AsyncAppender">
    <appender-ref ref="accessLog" />
</appender>

<logger name="reactor.netty.http.server.AccessLog" level="INFO" additivity="false">
    <appender-ref ref="async"/>
</logger>

以下示例通过编程方式启用它：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/accessLog/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .accessLog(true)
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

调用此方法的优先级高于系统属性配置。

默认情况下，日志格式为 Common Log Format，但您可以通过参数指定自定义格式，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/accessLog/CustomLogAccessFormatApplication.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.AccessLog;

public class CustomLogAccessFormatApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .accessLog(true, x -> AccessLog.create("method={}, uri={}", x.method(), x.uri()))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

您还可以使用 AccessLogFactory#createFilter 方法过滤 HTTP 访问日志，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/accessLog/FilterLogAccessApplication.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.AccessLogFactory;

public class FilterLogAccessApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .accessLog(true, AccessLogFactory.createFilter(p -> !String.valueOf(p.uri()).startsWith("/health/")))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

请注意，此方法也可以接受自定义格式参数，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/accessLog/CustomFormatAndFilterAccessLogApplication.java.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.AccessLog;
import reactor.netty.http.server.logging.AccessLogFactory;

public class CustomFormatAndFilterAccessLogApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .accessLog(true, AccessLogFactory.createFilter(p -> !String.valueOf(p.uri()).startsWith("/health/"), 1
						          x -> AccessLog.create("method={}, uri={}", x.method(), x.uri()))) 2
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

指定要使用的过滤谓词
指定要应用的自定义格式

9.2. 错误日志

您可以使用 -Dreactor.netty.http.server.errorLogEnabled=true 通过配置来启用 HTTP 错误日志。

您可以使用以下配置（适用于 Logback 或类似日志框架）来获得独立的 HTTP 错误日志文件：

<appender name="errorLog" class="ch.qos.logback.core.FileAppender">
    <file>error_log.log</file>
    <encoder>
        <pattern>%msg%n</pattern>
    </encoder>
</appender>
<appender name="async" class="ch.qos.logback.classic.AsyncAppender">
    <appender-ref ref="errorLog" />
</appender>

<logger name="reactor.netty.http.server.ErrorLog" level="ERROR" additivity="false">
    <appender-ref ref="async"/>
</logger>

以下示例通过编程方式启用它：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/errorLog/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .errorLog(true)
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

调用此方法的优先级高于系统属性配置。

默认情况下，日志格式为 [{datetime}] [pid {PID}] [client {remote address}] {exception message}，但您可以通过参数指定自定义格式，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/errorLog/CustomLogErrorFormatApplication.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.error.ErrorLog;

public class CustomLogErrorFormatApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .errorLog(true, x -> ErrorLog.create("method={}, uri={}", x.httpServerInfos().method(), x.httpServerInfos().uri()))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

您还可以使用 ErrorLogFactory#createFilter 方法过滤 HTTP 错误日志，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/errorLog/FilterLogErrorApplication.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.error.ErrorLogFactory;

public class FilterLogErrorApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .errorLog(true, ErrorLogFactory.createFilter(p -> p.cause() instanceof RuntimeException))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

请注意，此方法也可以接受自定义格式参数，如下例所示：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/errorLog/CustomFormatAndFilterErrorLogApplication.java.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.logging.error.ErrorLog;
import reactor.netty.http.server.logging.error.ErrorLogFactory;

public class CustomFormatAndFilterErrorLogApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .errorLog(true, ErrorLogFactory.createFilter(p -> p.cause() instanceof RuntimeException, 1
				                  x -> ErrorLog.create("method={}, uri={}", x.httpServerInfos().method(), x.httpServerInfos().uri()))) 2
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

指定要使用的过滤谓词
指定要应用的自定义格式

10. HTTP/2

默认情况下，HTTP 服务器支持 HTTP/1.1。如果您需要 HTTP/2，可以通过配置获得。除了协议配置之外，如果您需要 H2 而不需要 H2C（明文），还必须配置 SSL。

备注

由于 JDK8 并不“开箱即用”地支持应用层协议协商（ALPN）（尽管部分厂商已将 ALPN 移植回 JDK8），您需要额外依赖一个支持它的原生库——例如 netty-tcnative-boringssl-static。

以下清单给出了一个简单的 H2 示例：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/http2/H2Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.Http2SslContextSpec;
import reactor.netty.http.HttpProtocol;
import reactor.netty.http.server.HttpServer;
import java.io.File;

public class H2Application {

	public static void main(String[] args) {
		File cert = new File("certificate.crt");
		File key = new File("private.key");

		Http2SslContextSpec http2SslContextSpec = Http2SslContextSpec.forServer(cert, key);

		DisposableServer server =
				HttpServer.create()
				          .port(8080)
				          .protocol(HttpProtocol.H2)                            1
				          .secure(spec -> spec.sslContext(http2SslContextSpec)) 2
				          .handle((request, response) -> response.sendString(Mono.just("hello")))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

配置服务器仅支持 HTTP/2
配置 SSL

现在应用程序应表现为：

$ curl --http2 https://localhost:8080 -i
HTTP/2 200

hello

以下清单给出了一个简单的 H2C 示例：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/http2/H2CApplication.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.HttpProtocol;
import reactor.netty.http.server.HttpServer;

public class H2CApplication {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .port(8080)
				          .protocol(HttpProtocol.H2C)
				          .handle((request, response) -> response.sendString(Mono.just("hello")))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

现在应用程序应表现为：

$ curl --http2-prior-knowledge http://localhost:8080 -i
HTTP/2 200

hello

10.1. 协议选择

github.com/reactor/reactor-netty/tree/main/reactor-netty-http/src/main/java/reactor/netty/http/HttpProtocol.java

/**
	 * The default supported HTTP protocol by HttpServer and HttpClient.
	 */
	HTTP11,

	/**
	 * HTTP/2.0 support with TLS
	 * <p>If used along with HTTP/1.1 protocol, HTTP/2.0 will be the preferred protocol.
	 * While negotiating the application level protocol, HTTP/2.0 or HTTP/1.1 can be chosen.
	 * <p>If used without HTTP/1.1 protocol, HTTP/2.0 will always be offered as a protocol
	 * for communication with no fallback to HTTP/1.1.
	 */
	H2,

	/**
	 * HTTP/2.0 support with clear-text.
	 * <p>If used along with HTTP/1.1 protocol, will support H2C "upgrade":
	 * Request or consume requests as HTTP/1.1 first, looking for HTTP/2.0 headers
	 * and {@literal Connection: Upgrade}. A server will typically reply a successful
	 * 101 status if upgrade is successful or a fallback HTTP/1.1 response. When
	 * successful the client will start sending HTTP/2.0 traffic.
	 * <p>If used without HTTP/1.1 protocol, will support H2C "prior-knowledge": Doesn't
	 * require {@literal Connection: Upgrade} handshake between a client and server but
	 * fallback to HTTP/1.1 will not be supported.
	 */
	H2C,

	/**
	 * HTTP/3.0 support.
	 * @since 1.2.0
	 */
	HTTP3
}

11. HTTP/3

默认情况下，HTTP 服务器支持 HTTP/1.1。如果您需要 HTTP/3，可以通过配置获得。除了协议配置之外，您还需要添加对 io.netty:netty-codec-native-quic 的依赖。

以下清单给出了一个简单的 HTTP3 示例：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/http3/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.Http3SslContextSpec;
import reactor.netty.http.HttpProtocol;
import reactor.netty.http.server.HttpServer;

import java.io.File;
import java.time.Duration;

public class Application {

	public static void main(String[] args) throws Exception {
		File certChainFile = new File("certificate chain file");
		File keyFile = new File("private key file");

		Http3SslContextSpec serverCtx = Http3SslContextSpec.forServer(keyFile, null, certChainFile);

		DisposableServer server =
				HttpServer.create()
				          .port(8080)
				          .protocol(HttpProtocol.HTTP3)                 1
				          .secure(spec -> spec.sslContext(serverCtx))   2
				          .http3Settings(spec -> spec.idleTimeout(Duration.ofSeconds(5)) 3
				                                     .maxData(10000000)
				                                     .maxStreamDataBidirectionalLocal(1000000)
				                                     .maxStreamDataBidirectionalRemote(1000000)
				                                     .maxStreamsBidirectional(100))
				          .handle((request, response) -> response.header("server", "reactor-netty")
				                                                 .sendString(Mono.just("hello")))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

配置服务器仅支持 HTTP/3
配置 SSL
配置 HTTP/3 设置

现在应用程序应表现为：

$ curl --http3 https://localhost:8080 -i
HTTP/3 200
server: reactor-netty
content-length: 5

hello

12. 指标

HTTP 服务器支持与 Micrometer 的内置集成。它以 reactor.netty.http.server 为前缀暴露所有指标。

下表提供了 HTTP 服务器指标的相关信息：

指标名称	类型	说明
reactor.netty.http.server.streams.active	Gauge	活动的 HTTP/2 流数量。请参阅 Streams Active
reactor.netty.http.server.connections.active	Gauge	当前正在处理请求的 http 连接数。请参阅 Connections Active
reactor.netty.http.server.connections.total	Gauge	已打开的全部连接数。请参阅 Connections Total
reactor.netty.http.server.data.received	DistributionSummary	接收的数据量（字节）。请参阅 Data Received
reactor.netty.http.server.data.sent	DistributionSummary	发送的数据量（字节）。请参阅 Data Sent
reactor.netty.http.server.errors	Counter	发生的错误数量。请参阅 Errors Count
reactor.netty.http.server.data.received.time	Timer	消费入站数据所花费的时间。请参阅 Http Server Data Received Time
reactor.netty.http.server.data.sent.time	Timer	发送出站数据所花费的时间。请参阅 Http Server Data Sent Time
reactor.netty.http.server.response.time	Timer	请求/响应的总时间。请参阅 Http Server Response Time

还有以下附加指标可用：

ByteBufAllocator 指标

指标名称	类型	说明
reactor.netty.bytebuf.allocator.used.heap.memory	Gauge	堆缓冲区分配器预留的字节数。请参阅 Used Heap Memory
reactor.netty.bytebuf.allocator.used.direct.memory	Gauge	直接缓冲区分配器预留的字节数。请参阅 Used Direct Memory
reactor.netty.bytebuf.allocator.heap.arenas	Gauge	堆 arena 数量（当使用 `PooledByteBufAllocator` 时）。请参阅 Heap Arenas
reactor.netty.bytebuf.allocator.direct.arenas	Gauge	直接 arena 数量（当使用 `PooledByteBufAllocator` 时）。请参阅 Direct Arenas
reactor.netty.bytebuf.allocator.threadlocal.caches	Gauge	线程本地缓存数量（当使用 `PooledByteBufAllocator` 时）。请参阅 Thread Local Caches
reactor.netty.bytebuf.allocator.small.cache.size	Gauge	小型缓存的大小（当使用 `PooledByteBufAllocator` 时）。请参阅 Small Cache Size
reactor.netty.bytebuf.allocator.normal.cache.size	Gauge	普通缓存的大小（当使用 `PooledByteBufAllocator` 时）。请参阅 Normal Cache Size
reactor.netty.bytebuf.allocator.chunk.size	Gauge	arena 的块大小（当使用 `PooledByteBufAllocator` 时）。请参阅 Chunk Size
reactor.netty.bytebuf.allocator.active.heap.memory	Gauge	从堆缓冲池分配的在用缓冲区实际消耗的字节数（当使用 `PooledByteBufAllocator` 时）。请参阅 Active Heap Memory
reactor.netty.bytebuf.allocator.active.direct.memory	Gauge	从直接缓冲池分配的在用缓冲区实际消耗的字节数（当使用 `PooledByteBufAllocator` 时）。请参阅 Active Direct Memory

EventLoop 指标

指标名称	类型	说明
reactor.netty.eventloop.pending.tasks	Gauge	事件循环上待处理的任务数量。请参阅 Pending Tasks

以下示例启用了该集成：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/metrics/Application.java

import io.micrometer.core.instrument.Metrics;
import io.micrometer.core.instrument.config.MeterFilter;
import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

public class Application {

	public static void main(String[] args) {
		Metrics.globalRegistry 1
		       .config()
		       .meterFilter(MeterFilter.maximumAllowableTags("reactor.netty.http.server", "URI", 100, MeterFilter.deny()));

		DisposableServer server =
				HttpServer.create()
				          .metrics(true, s -> {
				              if (s.startsWith("/stream/")) { 2
				                  return "/stream/{n}";
				              }
				              else if (s.startsWith("/bytes/")) {
				                  return "/bytes/{n}";
				              }
				              return s;
				          }) 3
				          .route(r ->
				              r.get("/stream/{n}",
				                   (req, res) -> res.sendString(Mono.just(req.param("n"))))
				               .get("/bytes/{n}",
				                   (req, res) -> res.sendString(Mono.just(req.param("n")))))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

对带有 URI 标签的计量器应用上限
在可能时使用模板化 URI 作为 URI 标签的值
启用与 Micrometer 的内置集成

备注

为避免启用指标带来的内存与 CPU 开销，重要的是在可能时将真实 URI 转换为模板化 URI。若不转换为类似模板的形式，每个不同的 URI 都会产生一个不同的标签，从而占用大量指标内存。

备注

务必为带有 URI 标签的计量器应用上限。当真实 URI 无法模板化时，对计量器数量配置上限会有所帮助。有关更多信息，请参阅 maximumAllowableTags。

当需要将 HTTP 服务器指标集成到 Micrometer 之外的系统，或您希望自行提供与 Micrometer 的集成时，可以按如下方式提供自己的指标记录器：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/metrics/custom/Application.java

import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;
import reactor.netty.http.server.HttpServerMetricsRecorder;

import java.net.SocketAddress;
import java.time.Duration;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .metrics(true, CustomHttpServerMetricsRecorder::new) 1
				          .route(r ->
				              r.get("/stream/{n}",
				                   (req, res) -> res.sendString(Mono.just(req.param("n"))))
				               .get("/bytes/{n}",
				                   (req, res) -> res.sendString(Mono.just(req.param("n")))))
				          .bindNow();

		server.onDispose()
		      .block();
	}

启用 HTTP 服务器指标，并提供 HttpServerMetricsRecorder 实现。

13. 追踪

HTTP 服务器支持与 Micrometer Tracing 的内置集成。

下表提供了 HTTP 服务器跨度的相关信息：

上下文名称	说明
`<HTTP METHOD>_<URI>`	请求的信息与总时间。请参阅 Http Server Response Span。

以下示例启用了该集成。本示例使用 Brave，并将信息上报到 Zipkin。有关 OpenTelemetry 的设置，请参阅 Micrometer Tracing 文档。

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/tracing/Application.java

import brave.Tracing;
import brave.propagation.StrictCurrentTraceContext;
import brave.sampler.Sampler;
import io.micrometer.tracing.CurrentTraceContext;
import io.micrometer.tracing.Tracer;
import io.micrometer.tracing.brave.bridge.BraveBaggageManager;
import io.micrometer.tracing.brave.bridge.BraveCurrentTraceContext;
import io.micrometer.tracing.brave.bridge.BravePropagator;
import io.micrometer.tracing.brave.bridge.BraveTracer;
import io.micrometer.tracing.propagation.Propagator;
import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.observability.ReactorNettyPropagatingReceiverTracingObservationHandler;
import reactor.netty.http.server.HttpServer;
import zipkin2.reporter.brave.AsyncZipkinSpanHandler;
import zipkin2.reporter.urlconnection.URLConnectionSender;

import static reactor.netty.Metrics.OBSERVATION_REGISTRY;

public class Application {

	public static void main(String[] args) {
		init(); 1

		DisposableServer server =
				HttpServer.create()
				          .metrics(true, s -> {
				              if (s.startsWith("/stream/")) { 2
				                  return "/stream/{n}";
				              }
				              return s;
				          }) 3
				          .route(r -> r.get("/stream/{n}",
				              (req, res) -> res.sendString(Mono.just(req.param("n")))))
				          .bindNow();

		server.onDispose()
		      .block();
	}

	/**
	 * This setup is based on
	 * <a href="https://micrometer.io/docs/tracing#_micrometer_tracing_brave_setup">Micrometer Tracing Brave Setup</a>.
	 */
	static void init() {
		AsyncZipkinSpanHandler spanHandler = AsyncZipkinSpanHandler
				.create(URLConnectionSender.create("http://localhost:9411/api/v2/spans"));

		StrictCurrentTraceContext braveCurrentTraceContext = StrictCurrentTraceContext.create();

		CurrentTraceContext bridgeContext = new BraveCurrentTraceContext(braveCurrentTraceContext);

		Tracing tracing =
				Tracing.newBuilder()
				       .currentTraceContext(braveCurrentTraceContext)
				       .supportsJoin(false)
				       .traceId128Bit(true)
				       .sampler(Sampler.ALWAYS_SAMPLE)
				       .addSpanHandler(spanHandler)
				       .localServiceName("reactor-netty-examples")
				       .build();

		brave.Tracer braveTracer = tracing.tracer();

		Tracer tracer = new BraveTracer(braveTracer, bridgeContext, new BraveBaggageManager());

		Propagator propagator = new BravePropagator(tracing);

		OBSERVATION_REGISTRY.observationConfig()
		                    .observationHandler(new ReactorNettyPropagatingReceiverTracingObservationHandler(tracer, propagator));
	}
}

初始化 Brave、Zipkin 以及 Observation 注册表。
在可能时使用模板化 URI 作为 URI 标签的值。
启用与 Micrometer 的内置集成。

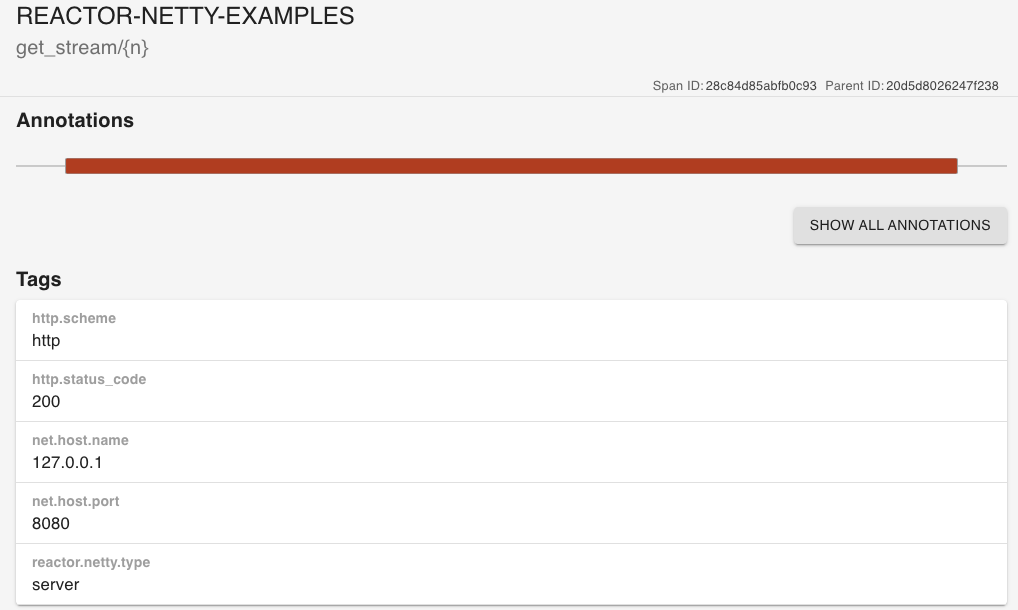

Zipkin 中的结果如下所示：

13.1. 获取当前观测

Micrometer 项目提供了一个库，用于在不同类型的上下文机制（如 ThreadLocal、Reactor Context 等）之间协助进行上下文传播。

以下示例展示了如何在自定义 ChannelHandler 中使用该库：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/tracing/custom/Application.java

import brave.Tracing;
import brave.propagation.StrictCurrentTraceContext;
import brave.sampler.Sampler;
import io.micrometer.context.ContextSnapshot;
import io.micrometer.context.ContextSnapshotFactory;
import io.micrometer.tracing.CurrentTraceContext;
import io.micrometer.tracing.Tracer;
import io.micrometer.tracing.brave.bridge.BraveBaggageManager;
import io.micrometer.tracing.brave.bridge.BraveCurrentTraceContext;
import io.micrometer.tracing.brave.bridge.BravePropagator;
import io.micrometer.tracing.brave.bridge.BraveTracer;
import io.micrometer.tracing.propagation.Propagator;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelOutboundHandlerAdapter;
import io.netty.channel.ChannelPromise;
import reactor.core.publisher.Mono;
import reactor.netty.DisposableServer;
import reactor.netty.http.observability.ReactorNettyPropagatingReceiverTracingObservationHandler;
import reactor.netty.http.server.HttpServer;
import zipkin2.reporter.brave.AsyncZipkinSpanHandler;
import zipkin2.reporter.urlconnection.URLConnectionSender;

import static reactor.netty.Metrics.OBSERVATION_REGISTRY;

public class Application {

	public static void main(String[] args) {
		init(); 1

		DisposableServer server =
				HttpServer.create()
				          .metrics(true, s -> {
				              if (s.startsWith("/stream/")) { 2
				                  return "/stream/{n}";
				              }
				              return s;
				          }) 3
				          .doOnConnection(conn -> conn.addHandlerLast(CustomChannelOutboundHandler.INSTANCE)) 4
				          .route(r -> r.get("/stream/{n}",
				              (req, res) -> res.sendString(Mono.just(req.param("n")))))
				          .bindNow();

		server.onDispose()
		      .block();
	}

	static final class CustomChannelOutboundHandler extends ChannelOutboundHandlerAdapter {

		static final ChannelHandler INSTANCE = new CustomChannelOutboundHandler();

		@Override
		public boolean isSharable() {
			return true;
		}

		@Override
		public void write(ChannelHandlerContext ctx, Object msg, ChannelPromise promise) {
			try (ContextSnapshot.Scope scope = ContextSnapshotFactory.builder().build().setThreadLocalsFrom(ctx.channel())) {
				System.out.println("Current Observation in Scope: " + OBSERVATION_REGISTRY.getCurrentObservation());
				//"FutureReturnValueIgnored" this is deliberate
				ctx.write(msg, promise);
			}
			System.out.println("Current Observation: " + OBSERVATION_REGISTRY.getCurrentObservation());
		}
	}

初始化 Brave、Zipkin 以及 Observation 注册表。
在可能时使用模板化 URI 作为 URI 标签的值。
启用与 Micrometer 的内置集成。
使用上下文传播库的自定义 ChannelHandler。本示例仅重写了 ChannelOutboundHandlerAdapter#write；如有需要，其余方法也可使用相同逻辑。此外，本示例会为给定 Channel 中存在值的所有 ThreadLocal 值进行设置；如需其他行为，请查阅上下文传播库 API。例如，您可能只想设置部分 ThreadLocal 值。

备注

当您在某个框架内启用 Reactor Netty 追踪时，可能需要让 Reactor Netty 使用该框架创建的 ObservationRegistry。为此，您需要调用 reactor.netty.Metrics#observationRegistry。您可能还需要使用该框架提供的 API 来配置 Reactor Netty 的 ObservationHandlers。

14. Unix 域套接字

当使用原生传输时，HTTP 服务器在所有 Java 版本上都支持 Unix 域套接字（UDS）；当使用 NIO 传输时，则在 Java 17 及以上版本上支持。

以下示例展示了如何使用 UDS 支持：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/uds/Application.java

import io.netty.channel.unix.DomainSocketAddress;
import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

//import java.net.UnixDomainSocketAddress;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          // The configuration below is available only when Epoll/KQueue transport is used
				          .bindAddress(() -> new DomainSocketAddress("/tmp/test.sock")) 1
				          // The configuration below is available only when NIO transport is used with Java 17+
				          //.bindAddress(() -> UnixDomainSocketAddress.of("/tmp/test.sock"))
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

指定要使用的 DomainSocketAddress

15. 超时配置

本节介绍可在 HttpServer 中使用的各种超时配置选项。配置恰当的超时可以改善或解决通信过程中的问题。这些配置选项可分组如下：

请求超时
连接超时
SSL/TLS 超时

15.1. 请求超时

以下清单列出了所有可用的请求超时配置选项。

readTimeout - 读取给定请求内容时，每次网络级读取操作之间的最大时间（精度：ms）
requestTimeout - 读取给定请求内容的最大时间（精度：ms）。

备注

配置读取/请求超时始终是一种良好实践。

要自定义默认设置，可以按如下方式配置 HttpServer：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/read/timeout/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

import java.time.Duration;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .readTimeout(Duration.ofSeconds(5))     1
				          .requestTimeout(Duration.ofSeconds(30)) 2
				          .handle((request, response) -> request.receive().then())
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

将读取超时配置为 5 秒。
将请求超时配置为 30 秒。

15.2. 连接超时

以下清单列出了所有可用的连接超时配置选项。

idleTimeout - 此连接保持打开并等待 HTTP 请求的最大时间（精度：ms）。一旦达到该超时，连接即被关闭。默认情况下未指定 idleTimeout，这表示不超时（即无限），意味着只有当某一对方显式决定关闭时连接才会被关闭。

备注

配置空闲超时始终是一种良好实践。

要自定义默认设置，可以按如下方式配置 HttpServer：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/idle/timeout/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.server.HttpServer;

import java.time.Duration;

public class Application {

	public static void main(String[] args) {
		DisposableServer server =
				HttpServer.create()
				          .idleTimeout(Duration.ofSeconds(1)) 1
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

将默认空闲超时配置为 1 秒。

15.3. SSL/TLS 超时

HttpServer 支持 Netty 提供的 SSL/TLS 功能。

以下列表描述了可用的超时配置选项：

handshakeTimeout - 使用此选项配置 SSL 握手超时（精度：ms）。默认值：10s。

备注

当预计会出现缓慢的网络连接时，应考虑增大 SSL 握手超时。

closeNotifyFlushTimeout - 使用此选项配置 SSL close_notify 刷写超时（精度：ms）。默认值：3s。
closeNotifyReadTimeout - 使用此选项配置 SSL close_notify 读取超时（精度：ms）。默认值：0s。

要自定义默认设置，可以按如下方式配置 HttpServer：

github.com/reactor/reactor-netty/tree/main/reactor-netty-examples/src/main/java/reactor/netty/examples/documentation/http/server/security/custom/Application.java

import reactor.netty.DisposableServer;
import reactor.netty.http.Http11SslContextSpec;
import reactor.netty.http.server.HttpServer;

import java.io.File;
import java.time.Duration;

public class Application {

	public static void main(String[] args) {
		File cert = new File("certificate.crt");
		File key = new File("private.key");

		Http11SslContextSpec http11SslContextSpec = Http11SslContextSpec.forServer(cert, key);

		DisposableServer server =
				HttpServer.create()
				          .secure(spec -> spec.sslContext(http11SslContextSpec)
				                              .handshakeTimeout(Duration.ofSeconds(30))         1
				                              .closeNotifyFlushTimeout(Duration.ofSeconds(10))  2
				                              .closeNotifyReadTimeout(Duration.ofSeconds(10)))  3
				          .bindNow();

		server.onDispose()
		      .block();
	}
}

将 SSL 握手超时配置为 30 秒。
将 SSL close_notify 刷写超时配置为 10 秒。
将 SSL close_notify 读取超时配置为 10 秒。

1. 启动与停止​

1.1. 主机与端口​

2. 预先初始化​

3. HTTP 路由​

3.1. SSE​

3.2. 静态资源​

4. 写入数据​

4.1. 添加请求头与其他元数据​

4.2. 压缩​

5. 读取数据​

5.1. 读取请求头、URI 参数与其他元数据​

5.2. 读取 POST 表单或 Multipart 数据​

5.2.1. 获取远程（客户端）地址​

5.3. HTTP 请求解码器​

6. 生命周期回调​

7. TCP 层配置​

7.1. 线路日志​

7.1.1. 线路日志格式化器​

7.2. 事件循环组​

7.2.1. 释放事件循环组​

8. SSL 与 TLS​

8.1. 服务器名称指示​

9. HTTP 日志​

9.1. 访问日志​

9.2. 错误日志​

10. HTTP/2​

10.1. 协议选择​

11. HTTP/3​

12. 指标​

13. 追踪​

13.1. 获取当前观测​

14. Unix 域套接字​

15. 超时配置​

15.1. 请求超时​

15.2. 连接超时​

15.3. SSL/TLS 超时​

1. 启动与停止

1.1. 主机与端口

2. 预先初始化

3. HTTP 路由

3.1. SSE

3.2. 静态资源

4. 写入数据

4.1. 添加请求头与其他元数据

4.2. 压缩

5. 读取数据

5.1. 读取请求头、URI 参数与其他元数据

5.2. 读取 POST 表单或 Multipart 数据

5.2.1. 获取远程（客户端）地址

5.3. HTTP 请求解码器

6. 生命周期回调

7. TCP 层配置

7.1. 线路日志

7.1.1. 线路日志格式化器

7.2. 事件循环组

7.2.1. 释放事件循环组

8. SSL 与 TLS

8.1. 服务器名称指示

9. HTTP 日志

9.1. 访问日志

9.2. 错误日志

10. HTTP/2

10.1. 协议选择

11. HTTP/3

12. 指标

13. 追踪

13.1. 获取当前观测

14. Unix 域套接字

15. 超时配置

15.1. 请求超时

15.2. 连接超时

15.3. SSL/TLS 超时
